Portables
Mototrbo digital mobile radio (DMR) equipment manufactured by Motorola Solutions.
MOTOTRBO ION
This new Smart Radio combines the features of a high-end DMR equipment with those of a next-generation Android smartphone. A single terminal for any job that allows voice and broadband communications, using different media: DMR Radio, WiFi, Bluetooth, LTE …
MOTOTRBO ION
MOTOROLA portable terminal. With 4 ”480 × 800 pixels capacitive front touch display and 1.05” top monochrome LCD display, LiIon impres2 battery, 4 GB RAM and 32 GB of internal storage. IP68 (2m, 2h). 13 MP rear camera. Dimensions 143 x 70 x 29 mm and weight 414 gr with standard battery. WiFi 802.11a / b / g / n / ac in 2.4 GHz and 5 GHz, Bluetooth 5.0 LE. GPS and Glonass / Beidou / Galileo. Front and rear microphones for optimal high-quality audio, eliminating close feedback. Android 10 with google services.Operation as a DMR radio in UHF 400-527 MHz, with up to 1000 channels, 4W / 1W, valid for Conventional systems, IP Site, Capacity Plus and Linked Capacity Plus and up to Capacity Max without the need for additional licenses.Remote configuration from a RadioCentral Software.
DP1000 Series
DP1000 series digital mobile portable radio (DMR).
DP1400
DISCONTINUED
A portable radio with no display or keypad, 32 channels, 2 programmable side buttons, emergency call, scanner, IP54, with no optional GPS, VOX, rental timer, basic 16-bit encryption, lone worker, scanner, voice channel announcement. Digital mode, IP Site Connect and reception audio levelling features are available under licence.
R2 Series
Portable Digital DMR radio, R2 series. Input range with the possibility of operation in analog mode only or in dual analog and digital mode (upgrade possible through software license). In digital mode supports IP Site and trunked Capacity Plus single-site systems with up to 2 repeaters (features can be activated by software license).
R2
Portable without display or keypad, 64 channels, 2 programmable side buttons, IP55 and MIL-STD 810 C/D/E/F/G/H, powerful speaker up to 101 phons, rental timer, basic 16-bit and advanced 40-bit (via software license), “isolated” worker, scanner, voice channel announcement. Enhanced sensitivity: 0.18uV (analog, 12dB SINAD) / 0.16 uV (digital, 5% BER). Enhanced ambient noise suppression via license.
DP2000e Series
This series has audio enhancement with the option of digital and analogue channels, intelligent audio, VOX, scanner, remote monitoring, enhanced sensitivity, voice channel announcement, individual, group and all calls, advanced 40-bit encryption, 5 analogue tone signalling and the option of a TIA certified battery. IP Site Connect, IP67, 2 programmable side buttons, automatic ambient noise suppression, over the air transmission interruption, reception audio levelling and mute mode. The telephone interface and Capacity Plus and Linked Capacity Plus features are available under licence. Specific battery clip vibrate mode.
DP2400E
A portable radio with no display or keypad, 32 channels, no GPS option, audio enhancement with the option of digital and analogue channels, lone worker, intelligent audio, VOX, scanner, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), voice channel announcement, individual, group and all calls, advanced 40-bit encryption, 5 analogue tone signalling and the option of a TIA certified battery. IP Site Connect, IP67, 2 programmable side buttons, automatic ambient noise suppression, over-the-air transmission interruption, reception audio levelling and mute mode. The telephone interface and Capacity Plus and Linked Capacity Plus features are available under licence. Specific battery clip vibrate mode.
DP2600E
A portable radio with a two-line, single-colour “day-night” display, small keypad, 128 channels, audio enhancement, lone worker, intelligent audio, VOX, scanner, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), voice channel announcement, individual, group and all calls, advanced 40-bit encryption, 5 analogue tone signalling and the option of a TIA certified battery. IP Site Connect, IP67, 2 programmable side and 2 front buttons, automatic ambient noise suppression, over-the-air transmission interruption, reception audio levelling and mute mode. The telephone interface and Capacity Plus and Linked Capacity Plus features are available under licence. Specific battery clip vibrate mode.
DP3000e Series
A compact high-performance IP68 certified series. Features audio enhancement with the option of digital and analogue channels, intelligent audio, VOX, scanner, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), 2 programmable side buttons, emergency button, voice channel announcement, individual, group and general calls, voice channel announcement, 40-bit encryption, 128 Mb RAM and 256 Mb Flash memory, optional memory card, lone worker mode, telephone interface, over-the-air transmission interruption, remote OTAP programming, 5 analogue tone signalling and the option of a TIA certified battery, GPS/GLONASS receiver, Bluetooth 4.0, wi-fi. IP Site Connect, Capacity Plus and Linked Capacity Plus features. Man down, indoor Bluetooth localisation, wi-fi programming, airplane mode, incoming message reader, reception audio levelling. AES 256 encryption and Capacity Max features are available under licence.
DP3441E
A portable radio with no display or keypad, 32 channels, pursuant to standard IP68. Features audio enhancement with the option of digital and analogue channels, “smart” audio, VOX, scanner, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), 2 programmable side buttons, emergency button, voice channel announcement, individual, group and general calls, 40-bit scrambler, 128 Mb RAM and 256 Mb Flash memory, options card option, “isolated worker” feature, telephone interface, over-the-air transmission interruption, remote OTAP programming, 5 analogue tone signalling and the option of a TIA certified battery, GPS/GLONASS receiver, Bluetooth 4.0, wi-fi. IP Site Connect, Capacity Plus and Linked Capacity Plus features. Man down,, indoor Bluetooth localisation, wi-fi programming, airplane mode, incoming message reader, reception audio levelling, mute mode. AES 256 encryption and Capacity Max features are available under licence.
DP3661E
A portable radio with a 5-line colour display and a small keypad with two programmable front buttons. 1000 channels, pursuant to standard IP68. Features audio enhancement with the option of digital and analogue channels, intelligent audio, VOX, scanner, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), 2 programmable side buttons, emergency button, voice channel announcement, individual, group and general calls, 40-bit encryption, 128 Mb RAM and 256 Mb Flash memory, optional memory card, lone worker mode, telephone interface, over-the-air transmission interruption, remote OTAP programming, 5 analogue tone signalling and the option of a TIA certified battery, GPS/GLONASS receiver, Bluetooth 4.0, wi-fi. IP Site Connect, Capacity Plus and Linked Capacity Plus features. Man down, indoor Bluetooth localisation, wi-fi programming, airplane mode, incoming message reader, reception audio levelling, mute mode. AES 256 encryption and Capacity Max features are available under licence.
DP4000e Series
This series provides excellent connectivity within the MOTOTRBO infrastructure, 3 programmable side buttons, emergency button, IP68, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, 5 analogue tone signalling and optional memory card, intelligent audio, the option of a TIA certified battery. IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, airplane mode, reception audio levelling, mute mode, incoming message reader. AES 256 encryption and Capacity Max features are available under licence. Specific battery clip vibrate mode. Models available with GPS, Wi-Fi and bluetooth.
DP4400/1E
DISCONTINUED
A portable radio with no display or keypad, 32 channels, IP68, with GPS and GLONASS (DP4401E model only), Bluetooth 4.0 (DP4401E model only), 3 programmable side buttons, emergency button, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, 5 analogue tone signalling and optional memory card, intelligent audio, the option of a TIA certified battery, IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, airplane mode, audio leveling, incoming message reader, mute mode, man down, (DP4401E model only), indoor localisation (DP4401E model only), wi-fi programming (DP4401E model only), AES 256 encryption and Capacity Max features are available under licence. Specific battery clip vibrate mode.
DP4600/1E
DISCONTINUED
A portable radio with a five-line, all-colour “day-night” display and a small keypad, 1000 channels, IP68, with GPS and GLONASS (DP4601E model only), Bluetooth 4.0 (DP4601E model only), 3 programmable side buttons and 2 front buttons, emergency button, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit scrambler, VOX, over-the-air transmission interruption, lone worker, 5 analogue tone signalling and optional memory card, intelligent audio, and the option of a TIA certified battery. IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, man down (DP4601E model only), indoor localisation (DP4601E model only), wi-fi (DP4601E model only), airplane mode, audio levelling, mute mode, incoming message reader. AES 256 encryption and Capacity Max features are available under licence. Specific battery clip vibrate mode.
DP4800/1E
DISCONTINUED
A portable radio with a five-line, all-colour “day-night” display and a complete keypad (Roman, Arabic or Cyrillic), 1000 channels, IP68, with GPS and GLONASS (DP4801E model only), Bluetooth 4.0 (DP4801E model only), 3 programmable side buttons and 2 front buttons, emergency button, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, 5 analogue tone signalling and optional memory card, intelligent audio, the option of a TIA certified battery. IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, man down (DP4801E model only), indoor localisation (DP4801E model only), wi-fi (DP4801E model only), airplane mode, audio levelling, mute mode, incoming message reader. AES 256 encryption and Capacity Max features can be activated under licence. Specific battery clip vibrate mode.
DP4401E SMA
DISCONTINUED
A portable radio with no display or keypad, SMA antenna connector, 32 channels, IP68, with GPS and GLONASS, Bluetooth 4.0, 3 programmable side buttons, emergency button, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, 5 analogue tone signalling, optional memory card, intelligent audio, and the option of a TIA certified battery. IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, man down, airplane mode, audio levelling, incoming message reader, mute mode, wi-fi programming, indoor localisation. AES 256 encryption and Capacity Max features are available under licence. Specific battery clip vibrate mode.
DP4801E SMA
DISCONTINUED
A portable radio with a five-line, all-colour “day-night” display and a complete keypad (Roman, Arabic or Cyrillic), SMA antenna connector, 1000 channels, IP68, with GPS and GLONASS, Bluetooth 4.0, 3 programmable side and 2 front buttons, emergency button, individual, group and general calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analogue, 0.14 uV digital), scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, 5 tone analogue signalling, optional memory card, intelligent audio, the option of a TIA certified battery. IP Site Connect, Capacity Plus and Linked Capacity Plus features, 128 Mb RAM and 256 Mb Flash memory, man down, airplane mode, audio levelling, mute mode, incoming message reader, wi-fi programming, indoor positioning system. AES 256 encryption and Capacity Max features are available under licence. Specific battery clip vibrate mode.
R7 Series
The most advanced series within MOTOTRBO, IP66 and IP68, very powerful speaker up to 107 phons, great audio clarity thanks to noise cancellation using one or two microphones, up to 5 programmable buttons, emergency button, printed smart batteries and chargers, individual, group and all calls, telephone interface, remote monitoring, enhanced sensitivity (0.16 uV analog, 0.14 uV digital), scanner, 40-bit voice scrambler, VOX, on-air TX interrupt, “isolated” worker, 5-tone signaling in analog mode, option card capability, “smart” audio, available under TIA4950 standard. Operation in IP Site Connect, Capacity Plus, Linked Capacity Plus, reading of received messages. AES256 secrafonía and operation in Capacity Max (Tier III) can be activated by means of license. Available models with or without 2.4″ Color display and full keypad. Available with GPS (+Glonass +Beidou +Galileo), WiFi 2.4 & 5 GHz, Bluetooth 5.2, audio recording, and radio control from a collaborative APP installed on a smartphone.
R7a
Portable without display or keypad, 64 channels, IP66 and IP68, MIL STD810, UHF and VHF, 3 programmable side buttons, emergency button, all call types, enhanced sensitivity (0.16 uV analog, 0.14 uV digital), scanner, 40-bit voice scrambler, “isolated” worker, 5 analog tone signaling, very clear “smart” audio thanks to automatic cancellation using one microphone, powerful speaker up to 107 phons. Operation in analog and digital networks IP Site Connect, Capacity Plus, Linked Capacity Plus.
No possibility of man down, GPS, Bluetooth, WiFi, audio recording or control from APP on smartphone. AES256 encryption and operation in Capacity Max (Tier III networks) can be activated by means of a license.
No initial activation required.
Models available under TIA4950 standards.
R7
2 portable models: NKP without keypad and display and FKP with full keypad and 2.4″ QVGA 320×240 pixels color display.
64/1000 channels (NKP/FKP models), IP66 and IP68, MIL STD810, UHF and VHF, 3 programmable side buttons (NKP) and 2 more on the keypad (FKP), emergency button, all call types, enhanced sensitivity (0.16 uV analog, 0, 14 uV digital), scanner, 40-bit voice scrambler, “isolated” worker, 5 analog tone signaling, very clear “smart” audio thanks to automatic cancellation using two DINC microphones, powerful loudspeaker up to 107 phons. Operation in analog and digital networks IP Site Connect, Capacity Plus, Linked Capacity Plus.
By licenses you can activate man down, GPS (+Glonass +Beidou +Galileo), Bluetooth 5.2 for audio and up to 4 data devices, WiFi 2.4 & 5 GHz, WPA-3, audio recording and control from APP on smartphone (all these features are included in the “Premium” models, in the normal models can be purchased individually).
In addition to all of them (premium and normal), AES256 encryption and Capacity Max operation (Tier III networks) can be activated by means of SW licenses.
They require initial activation via Wifi connection to the Motorola server.
NKP and FKP models available under TIA4950 standards.

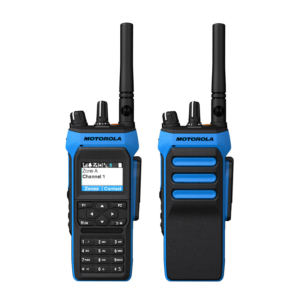

DP4000 Series ATEX
A series of equipment compliant with standards ATEX Gas: ATEX: Class II 2G Ex ib, IIC T4 Gb, IECEx: Ex ib IIC T4 Gb; Dust: Class II 2D Ex ib, IIIC T130°C Db, IECEx: Ex ib IIIC, T130°C Db, Mining: Class I M2 Ex, ib I Mb, IECEx: Ex ib I Mb, 3 programmable side buttons, emergency button, IP67, individual, group and all calls, telephone interface, remote monitoring, scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, man down, 5 tone analogue signalling, GPS, over-the-air programming, intelligent audio, incoming message reader, airplane mode, reception audio levelling, IP Site Connect, Capacity Plus, Linked Capacity Plus features. AES 256 encryption and Capacity Max features are available under licence.

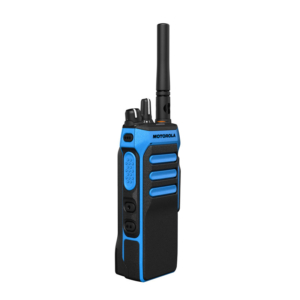

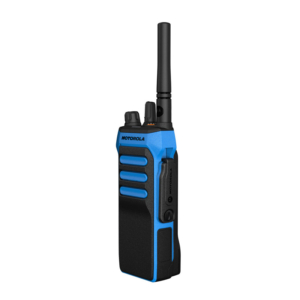

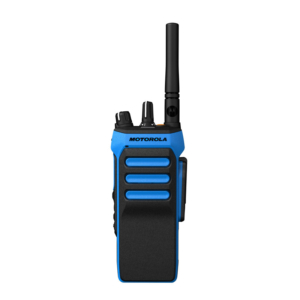

DP4401 ATEX
A portable radio with 32 channels and no display or keypad, just 1 w. Complies with standards ATEX Gas: ATEX: Class II 2G Ex ib, IIC T4 Gb, IECEx: Ex ib IIC T4 Gb; Dust: Class II 2D Ex ib, IIIC T130°C Db, IECEx: Ex ib IIIC, T130°C Db, Mining: Class I M2 Ex, ib I Mb, IECEx: Ex ib I Mb, 3 programmable side buttons, emergency button, individual, group and all calls, telephone interface, remote monitoring, scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, man down, 5 tone analogue signalling, GPS, over-the-air programming, intelligent audio, incoming message reader, airplane mode, audio levelling, IP Site Connect, Capacity Plus, Linked Capacity Plus features. AES 256 encryption and Capacity Max features are available under licence.

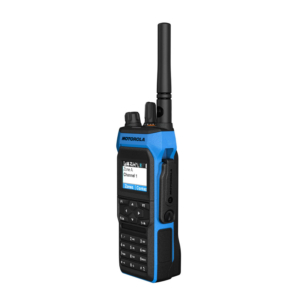

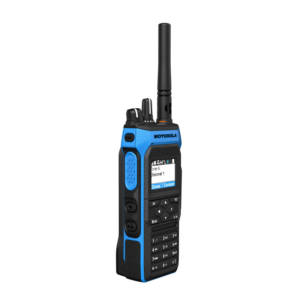

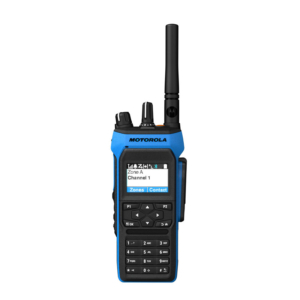

DP4801 ATEX
A portable radio with 1000 channels and a 5-line all-colour day-night display and a complete keypad, just 1 w. Complies with standards ATEX Gas: ATEX: Class II 2G Ex ib, IIC T4 Gb, IECEx: Ex ib IIC T4 Gb; Dust: Class II 2D Ex ib, IIIC T130°C Db, IECEx: Ex ib IIIC, T130°C Db, Mining: Class I M2 Ex, ib I Mb, IECEx: Ex ib I Mb, 3 programmable side and 2 front buttons, emergency button, IP67, individual, group and all calls, telephone interface, remote monitoring, scanner, 40-bit encryption, VOX, over-the-air transmission interruption, lone worker, man down, 5 tone analogue signalling, GPS, over-the-air programming, intelligent audio, incoming message reader, airplane mode, reception audio levelling, IP Site Connect, Capacity Plus, Linked Capacity Plus features. AES 256 encryption and Capacity Max features are available under licence.
SL1000/2000 Series
Slim, lightweight MOTOTRBO series with a built-in display. 1 programmable side button, 5 tone signalling, individual and group calls, scanner, 16 or 40-bit encryption (optional with SL2600), VOX, lone worker, channel or function change voice announcement, IP54, bluetooth (SL2600 only).
SL1600
A portable radio with an LCD matrix display and no keypad, 99 channels, no GPS option, 1-2 w on analogue channels and 1-3 w on digital channels, 1 programmable side button, individual and group calls, scanner, 16-bit encryption, VOX, lone worker, channel or function change voice announcement, IP54. IP Site Connect, 5-tone signaling, reception audio levelling and mute mode features are available under licence.
SL2600
A portable radio with a 2-line OLED display and four virtual buttons, 256 channels, 1-2w on analogue channels and 1-3w on digital channels, IP54, no GPS option, Bluetooth 4.0, 1 programmable side button, individual and group calls, scanner, 5-tone signaling, 16-bit encryption, VOX, lone worker, channel or function change voice announcement, IP Site Connect feature. 40-bit encryption, over-the-air transmission interruption, Capacity Plus and Linked Capacity Plus, telephone interface, wi-fi programming, Bluetooth indoor positioning, received audio levelling and mute mode features are available under licence.
EVX Series
Entry-level DMR equipment with 5 analogue tones and analogue encryption.
EVXS24
256-channel portable radio in black or yellow, UHF only, 4 programmable buttons, 8-character alphanumeric display, emergency call, lone worker, text messages, battery saving mode, scanner, VOX, IP67.
Mobiles / Bases
Mototrbo digital mobile radio (DMR) equipment manufactured by Motorola Solutions.
DM1000 Series
DM1000 series digital mobile radio (DMR).
DM1400
32-channel mobile radio, RF power from 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and/or digital operation, 2-digit numeric display, 4 w internal speaker, ruggedized front and rear accessory connectors, 2 programmable buttons, individual, group and emergency calls, scanner, 16-bit encryption, VOX, lone worker, channel change voice announcement, IP54. Digital use (on analogue versions), IP Site Connect and reception audio levelling features are available under licence.
DM1600
160-channel mobile radio, RF power from 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and/or digital operation, 2-line black and white display, built-in 4 w speaker, ruggedized front and rear accessory connectors, 4 programmable buttons, individual, group and emergency calls, scanner, 16-bit encryption, VOX, lone worker, channel change voice announcement, IP54. Digital use (on analogue versions), IP Site Connect and reception audio levelling features are available under licence.
DM2000 Series
Mototrbo digital mobile radio (DMR) equipment manufactured by Motorola Solutions.
DM2600
256-channel mobile device, RF power from 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital operation, 2-line black and white display, built-in 4 w speaker, ruggedized front and rear accessory connectors, 4 programmable buttons, individual, group and emergency calls, scanner, 16-bit encryption, VOX, lone worker, 5-tone analogue signalling, channel change voice announcement, intelligent audio, optional memory card, IP54, IP Site Connect feature. Digital use (on analogue versions), IP Site Connect and reception audio levelling features are available under licence. Capacity Plus and Linked Capacity Plus, reception audio levelling, mute mode, 40-bit encryption, transmission interruption, telephone connection features available under licence.
DM4000e Series
Mobile device series with RF power of 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital mode, display, built-in 3 w speaker, ruggedized front and rear accessory connectors, 4 programmable buttons, individual, emergency, group and all calls, remote monitoring, enhanced sensitivity (0.18 uV analogue, 0.16 uV digital), scanner, 5-tone analogue signalling, 40-bit encryption, VOX, lone worker, channel change voice announcement, intelligent audio, 128 Mb RAM and 256 Mb Flash memory, IP Site Connect, Capacity Plus and Linked Capacity Plus features, IP54, reception audio levelling, transmission interruption, incoming message reader, mute mode. The DM4401e and DM4601e models feature Wi-Fi, GPS and Bluetooth. Capacity Max and AES 256 encryption are available under licence. Optional remote control head, remote Bluetooth micro-speaker and intelligent microphone.
DM4400E
99-channel mobile device with RF power of 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital mode, 2-digit display, built-in 3 w speaker, ruggedized front and rear accessory connectors, USB connector, 4 programmable buttons, individual, emergency, group and all calls, remote monitoring, enhanced sensitivity (0.18 uV analogue, 0.16 uV digital), scanner, 5 tone analogue signalling, 16 or 40-bit encryption, VOX, lone worker, channel change voice announcement, intelligent audio, 128 Mb RAM and 256 Mb Flash memory, IP Site Connect, Capacity Plus and Linked Capacity Plus features, IP54, reception audio levelling, mute mode, transmission interruption, incoming message reader. Capacity Max and AES 256 encryption are available under licence. Optional remote control head, remote 100 m Bluetooth micro-speaker.
DM4401E
99-channel mobile device with GPS/GLONASS and BLUETOOTH, with RF power of 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital mode, 2-digit display, built-in 3 w speaker, ruggedized front and rear accessory connectors, USB connector, 4 programmable buttons, individual, emergency, group and all calls, remote monitoring, enhanced sensitivity (0.18 uV analogue, 0.16 uV digital), scanner, 5 tone analogue signalling, 16 or 40-bit encryption, VOX, lone worker, channel change voice announcement, intelligent audio, 128 Mb RAM and 256 Mb Flash memory, IP Site Connect, Capacity Plus and Linked Capacity Plus features, IP54, reception audio levelling, mute mode, transmission interruption, incoming message reader, wi-fi programming, indoor Bluetooth positioning. Capacity Max and AES 256 encryption are available under licence. Optional remote control head and remote 100 m Bluetooth micro-speaker.
DM4600E
1000-channel mobile device with RF power of 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital mode, 4-line alphanumeric display with icons, built-in 3 w speaker, ruggedized front and rear accessory connectors, USB connector, 4 programmable buttons, individual, emergency, group and all calls, remote monitoring, enhanced sensitivity (0.18 uV analogue, 0.16 uV digital), scanner, 5 tone analogue signalling, 16 or 40-bit encryption, VOX, lone worker, channel change voice announcement, intelligent audio, 128 Mb RAM and 256 Mb Flash memory, IP Site Connect, Capacity Plus and Linked Capacity Plus features, IP54, reception audio levelling, mute mode, transmission interruption, incoming message reader. Capacity Max and AES 256 encryption are available under licence. Optional remote control head, remote 100 m Bluetooth micro-speaker and intelligent microphone.
DM4601E
1000-channel mobile device with GPS/GLONASS and BLUETOOTH, with RF power of 1-25 w or 25-40 w (in UHF) or 25-45 w (in VHF). Analogue and digital mode, 4-line alphanumeric display with icons, built-in 3 w speaker, ruggedized front and rear accessory connectors, USB connector, 4 programmable buttons, individual, emergency, group and all calls, remote monitoring, enhanced sensitivity (0.18 uV analogue, 0.16 uV digital), scanner, 5 tone analogue signalling, 16 or 40-bit encryption, VOX, lone worker, channel change voice announcement, intelligent audio, 128 Mb RAM and 256 Mb Flash memory, IP Site Connect, Capacity Plus and Linked Capacity Plus features, IP54, reception audio levelling, mute mode, transmission interruption, incoming message reader, wi-fi programming, indoor Bluetooth positioning. Capacity Max and AES 256 encryption are available under licence. Optional remote control head, remote 100 m Bluetooth micro-speaker and intelligent microphone.
Repeaters
A series of Motorola Solutions repeaters operating in analogue and/or digital mode. Equipped with two slots, allowing for two conversations on the same frequency. 64 channels, Ethernet port, IP Site Connect. Capacity Plus, Linked Capacity Plus, Capacity Max, telephone interconnection and digital voting features are available under licence. RDAC remote control and diagnostic software.
SLR Series
DMR repeaters.
SLR1000
A 64- channel repeater with RF power of 1-10 w, built-in antenna, indoor or outdoor operation, low consumption, no need for heating, ventilation or air conditioning, outdoor Ethernet connectors, 12V DC power supply or via AC source, compact size (23 x 28 x 10 cm) and lightweight (4.5 kg), diagnosis via website. Capacity Plus, Linked Capacity Plus, Capacity Max, telephone interconnection, digital voting and single-frequency repetition features are available under licence.
SLR5500
A 64-channel repeater with RF power of 1-50w, optional continuous cycle operation and repeater deactivation, one 19″-high rack unit, back-up battery interface, IP Site Connect, analogue, MPT1327. Capacity Plus, Linked Capacity Plus, Capacity Max, telephone interconnection, digital voting and single-frequency repetition features are available under licence.
SLR8000
A 64-channel repeater with RF power of 1-100 w, optional continuous cycle operation and repeater deactivation, two 19″-high rack units, back-up battery interface, IP Site Connect MPT1327, microphone and front speaker input, volume control button, optional 4-wire tone control, two fans, receiver with enhanced noise suppression. Capacity Plus, Linked Capacity Plus, Capacity Max, telephone interconnection, digital voting and single-frequency repetition features are available under licence.
Systems (Topological)
Mototrbo DMR systems manufactured by Motorola Solutions.
IP SITE CONNECT
Conventional multi-site Tier II DMR system that extends radio coverage to a maximum of 15 sites. This radio system allows for up to 15 repeaters to be interconnected via IP to cover a widely dispersed geographical area. The radio equipment communicates with the different repeaters in accordance with the level of the received signal, roaming between them and always working under the area of coverage of the best possible site.
CAPACITY PLUS
Mono-site DMR trunking system with up to 8 voice and 4 data repeaters designed to serve a large number of users and groups in a specific location. This digital radio system is designed to support communications for up to 1200 users in a geographical area delimited by the coverage of the site, in accordance with the number of repeaters in the system. It can be deployed using a single or several repeaters interconnected via IP through a switch. All these repeaters can be upgraded to this function under licence.
CAPACITY PLUS MULTISITE
A multi-site DMR trunking system designed to expand the Capacity PLUS system settings up to 15 repeater sites. This digital system consists of the combination of the two previous systems to deploy a digital trunking network with the capacity to provide voice and data to a large number of users in a widely dispersed geographical area. All these repeaters can be upgraded to this function under licence.
CAPACITY MAX
A Tier III DMR trunking system designed to provide radio service to large networks with up to 250 repeater sites with 15 voice repeaters and 6 data repeaters per site. Proprietary or Tier III DMR standard operating mode. Upgradeable to this function under licence. Simple migration from Capacity PLUS systems to the Capacity MAX system. Multiple radio functions that enable this solution to be used in any professional communications network.
Applications
DMR applications.
SISCOM (Telcom)
SISCOM is an audio gateway designed to operate in multiple analogue and digital radio systems. It is specifically designed for use in TETRA, DMR and PMR infrastructure. This gateway allows for the crossover of audio communications between different radio systems in accordance with the selected settings. Moreover, it can be used as a DMO Gateway, serving as an audio gateway between a group of radios operating in direct mode and tetra infrastructure. It is supplied in 19” rack or desktop format.
TRBOnet Enterprise
TRBOnet Enterprise is a powerful, secure, and feature-rich control room solution designed to work with MOTOTRBO two-way radio systems of any size and complexity. The software was first released in 2008 and has become one of the leading dispatch systems in the world. It provides the GPS positioning of terminals on a map, intervention in network calls, call recording, control over radio terminals, incoming and outgoing text messages, telemetry, etc.
This advanced IP-based dispatch system features a wide range of additional modules such as integration with SIP telephony, PoC mobile phones, fingerprint and watermark recording, alarm management, job ticketing, round control, IP camera control. It provides a back-up server, even in redundant locations. The intuitive and personalisable graphical interface on up to three screens significantly reduces learning time and enables operators to focus on the tasks that matter. The IP nature of this product makes it extremely flexible and scalable, enabling your system to grow as needed. More radio users, more dispatchers (either via PC or on web browsers using tablets), more radio repeaters and remote radios can be added to the system under licence. Optional use of IP gateways (swift agent) for the management and control of remote radios and repeaters.
TRBOnet Plus
TRBOnet Plus is an IP-based dispatch application with capabilities far beyond simple dispatch features and functions. This powerful solution enables the user to control and manage all the available resources of Motorola MOTOTRBO radio systems. The voice over IP dispatch function is complemented by text messaging, voice recording, telephone interconnection and many other features for far more efficient communication. Our clients can choose between a single-server installation (single-post) or a distributed and redundant system. TRBOnet Plus is compatible with all MOTOTRBO systems, from a single repeater to the biggest Linked Capacity Plus and Capacity Max networks, which can feature up to 250 repeater sites. It also provides connection to Motorola Tetra Dimetra Express systems. Moreover, two or more different MOTOTRBO systems can be connected to the same server to create seamless communication between users and dispatchers on different networks. TRBOnet Plus software is a highly flexible and scalable solution that will enable your system to grow in a changing environment.
TRBOnet Watch
TRBOnet Watch is an advanced radio network maintenance software programme designed to extract (“sniffer”) data package frames from MOTOTRBO radio systems for evaluation and monitoring. Watch is a client-server application that enables you to monitor a MOTOTRBO DMR network remotely, thereby eliminating the need for site visits and significantly reducing travelling costs. It provides real-time analysis, system component failure detection, analytics, system usage statistics and performance evaluation. It is an essential tool for the implementation, commissioning and maintenance of any Motorola digital mobile radio network.
TRBOnet Voice Recording
TRBOnet Voice Recording is a simplified TRBOnet Enterprise dispatch software solution specifically designed for the handling and management of communications recordings on multi-site MOTOTRBO IP Site Connect, Capacity Plus and Linked Capacity Plus radio systems.
TRBOnet Agent
TRBOnet Agent is an RoIP (radio over IP)-type solution (software & hardware) designed to connect a MOTORBO radio to the TRBOnet dispatch centre via IP. This is the ideal solution for cases where the control centre is separated from the network coverage area with the need to connect a radio for the integration of the communications of this radio in the control centre. It also allows for the integration of legacy analogue radio to the agent using cabling.
RDAC
Monitoring and control software for IP Site Connect, Capacity PLUS / Multi-site radio systems. It delivers alerts via e-mail and can be used to operate the monitored repeaters remotely.
IMPRES BATTERY FLEET MANAGEMENT
IMPRES battery management and control software over the air or using a cable connection with chargers. It is designed for the exhaustive control of battery status in quasi real time, providing the charge status, useful life and charge/discharge history of each battery at any given time.
